3D Pack Premium¶

Requirements

Feature flag pack3d-premium needs to be enabled for pack3d_premium to be available.

USAGE

Set Pack3d Premium as the build_packer_type:

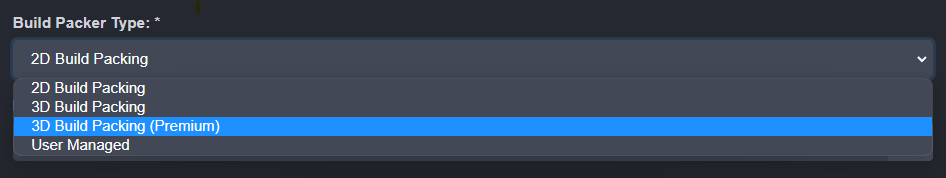

Once the pack3d-premium feature flag is enabled the 3D Build Packing (Premium) option will appear as a build packer type for the printer type

curl --location --request PUT 'https://<domain>/printer-type/dc9cd684-8bb8-4bf9-9580-17bae705b6c6/'
--header 'Content-Type: application/json'
--header 'Cookie: session=<session_id>'
--data '{
    "build_volume": {
        "x": 400,
        "y": 400,
        "z": 400
    },
    "build_packer_type": "pack3d_premium"
}'

Create The Order:

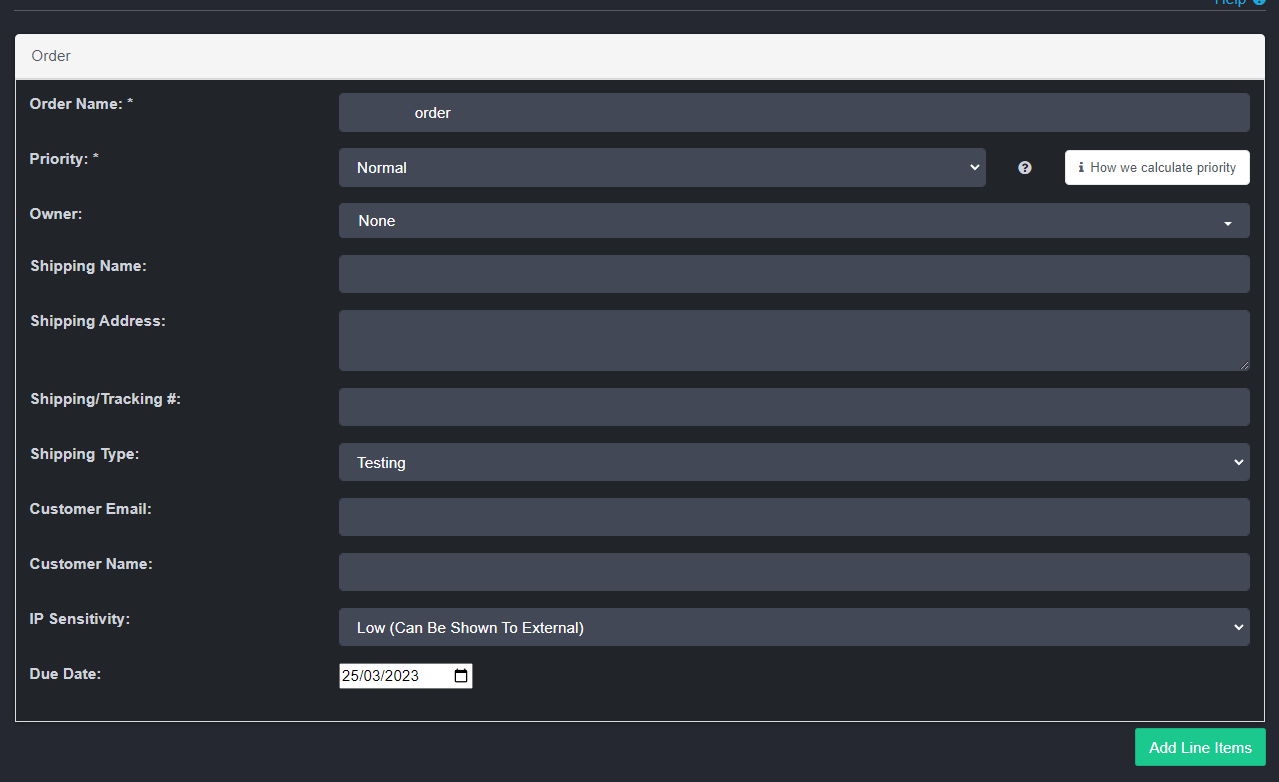

create an order then click Add Line Items

curl --location 'https://<domain>/order/'
--header 'Content-Type: application/json'
--header 'Cookie: session=<session_id>'
--data '{
    "bureau": "https://<domain>/bureau/506ae7d9-77ce-4730-ae58-99b69ce954c4/",
    "due_date": "2023-03-25T00:00:00.000Z",
    "ip_sensitivity": "low",
    "name": "Pack3d Premium order",
    "priority": 65,
    "shipping": {
        "address": null,
        "uri": "https://<domain>/shipping/60e6934e-4c13-4596-bf82-447eb0aba2ce/"
    }
}'

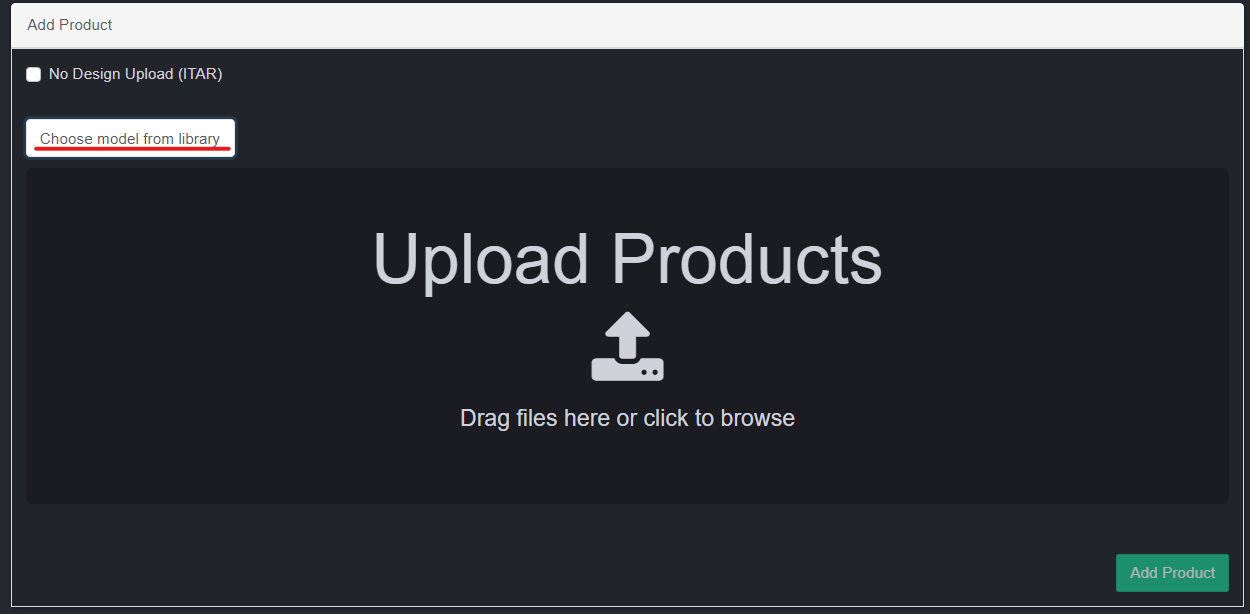

choose a model from the model library/upload your own model or check uploading a model section:

**Add product**

curl --location 'https://<domain>/product/'
--header 'Content-Type: application/json'
--header 'Cookie: session=<session_id>'
--data '{
    "order": "https://<domain>/order/eedf83a4-55aa-47f5-8ca4-71fde2c7a78f/",
    "model_library": "https://<domain>/model-library/7a92359a-3317-407a-bf16-3032dd5b874b/"
}'

**Add line item**

curl --location 'https://<domain>/line-item/'
--header 'Content-Type: application/json'
--header 'Cookie: session=<session_id>'
--data '{
    "bureau": "https://<domain>/bureau/506ae7d9-77ce-4730-ae58-99b69ce954c4/",
    "materials": {
        "base": "https://<domain>/material/de5e39aa-4075-4a3c-9357-82f396f45336/"
    },
    "notes": "",
    "priority": 65,
    "quantity": 23,
    "workflow": "https://<domain>/workflow/b8c5d3da-f71b-4d25-a901-75327c91ceee/",
    "support_strategy": null,
    "infill_strategy": null,
    "custom_field_values": [],
    "name": null,
    "customer_id": null,
    "product": "https://<domain>/product/df12b7d4-0bf4-4402-886a-fb5c60d7efd1/",
    "order": "https://<domain>/order/eedf83a4-55aa-47f5-8ca4-71fde2c7a78f/",
    "model": "https://<domain>/model/19abfe0f-e8f4-46c6-abd9-c8aad6da4db1/",
    "no_model_upload": false
}'

confirm line item
curl --location --request PUT 'https://<domain>/line-item/d3ee01aa-6024-4b21-bc13-c06e210bea5e/'
--header 'Content-Type: application/json'
--header 'Cookie: session=<session_id>'
--data '{
    "no_model_upload": false,
    "bureau": "https://<domain>/bureau/506ae7d9-77ce-4730-ae58-99b69ce954c4/",
    "layer_thickness": 0.2,
    "materials": {
        "base": "https://<domain>/material/de5e39aa-4075-4a3c-9357-82f396f45336/"
    },
    "notes": "",
    "name": null,
    "customer_id": null,
    "quantity": 23,
    "workflow": "https://<domain>/workflow/b8c5d3da-f71b-4d25-a901-75327c91ceee/",
    "custom_field_values": [],
    "status": "confirmed"
}'

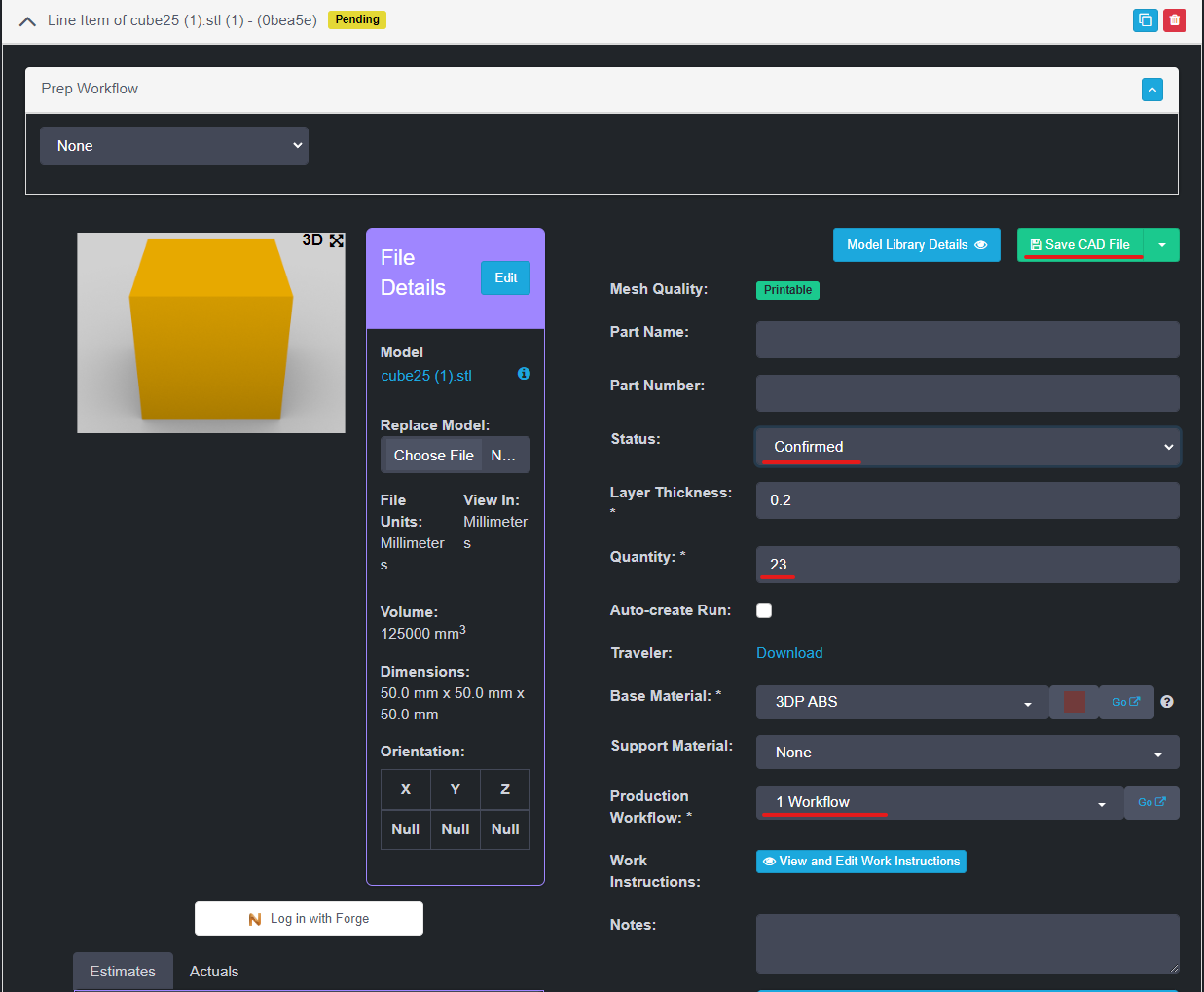

choose a workflow that works with the printer type and set the quantity to a large number to be able to demonstrate the packing capability. be careful not to exceed the maximum build volume of the printer:

Create The Run:

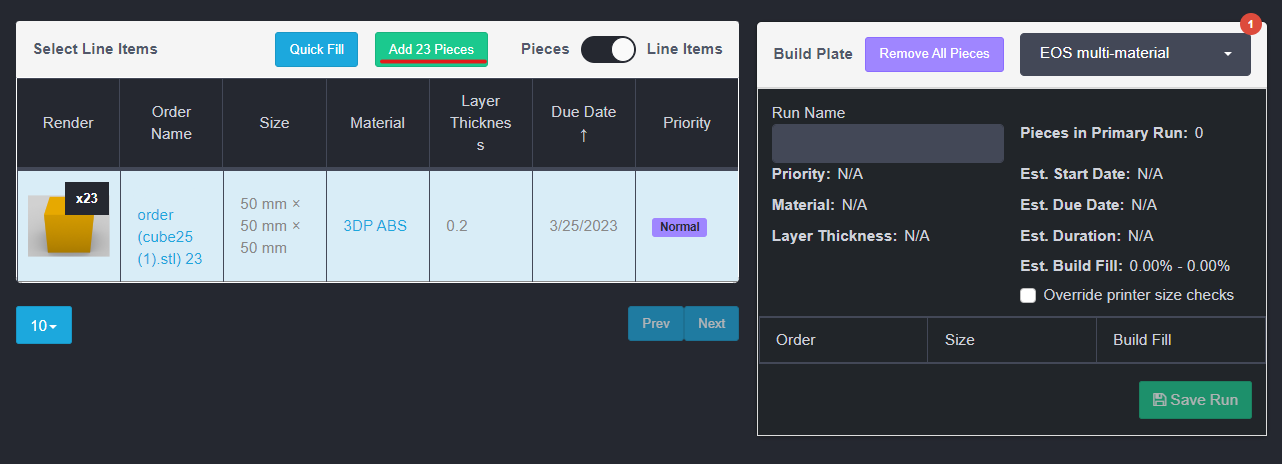

Go to the Add run page and select the printer then add the pieces to the plate:

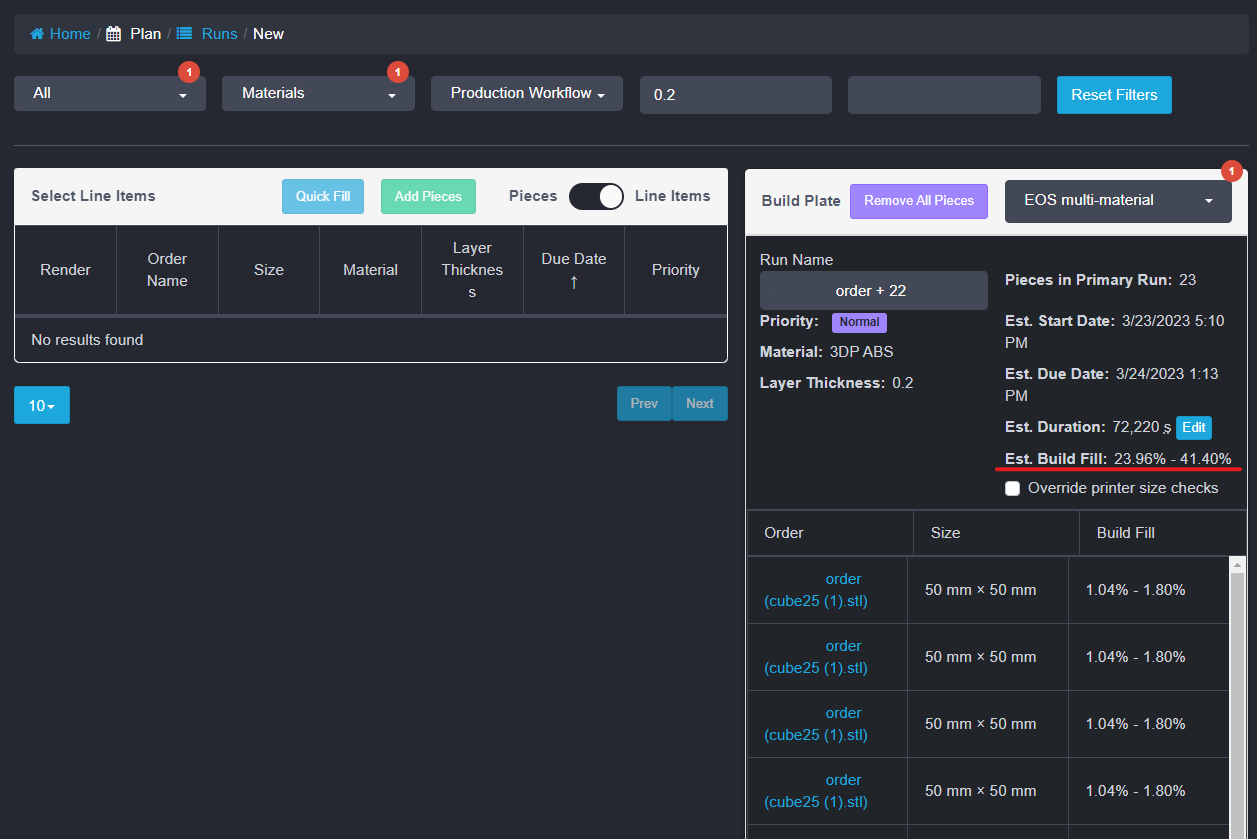

you can see an estimation of the build fill

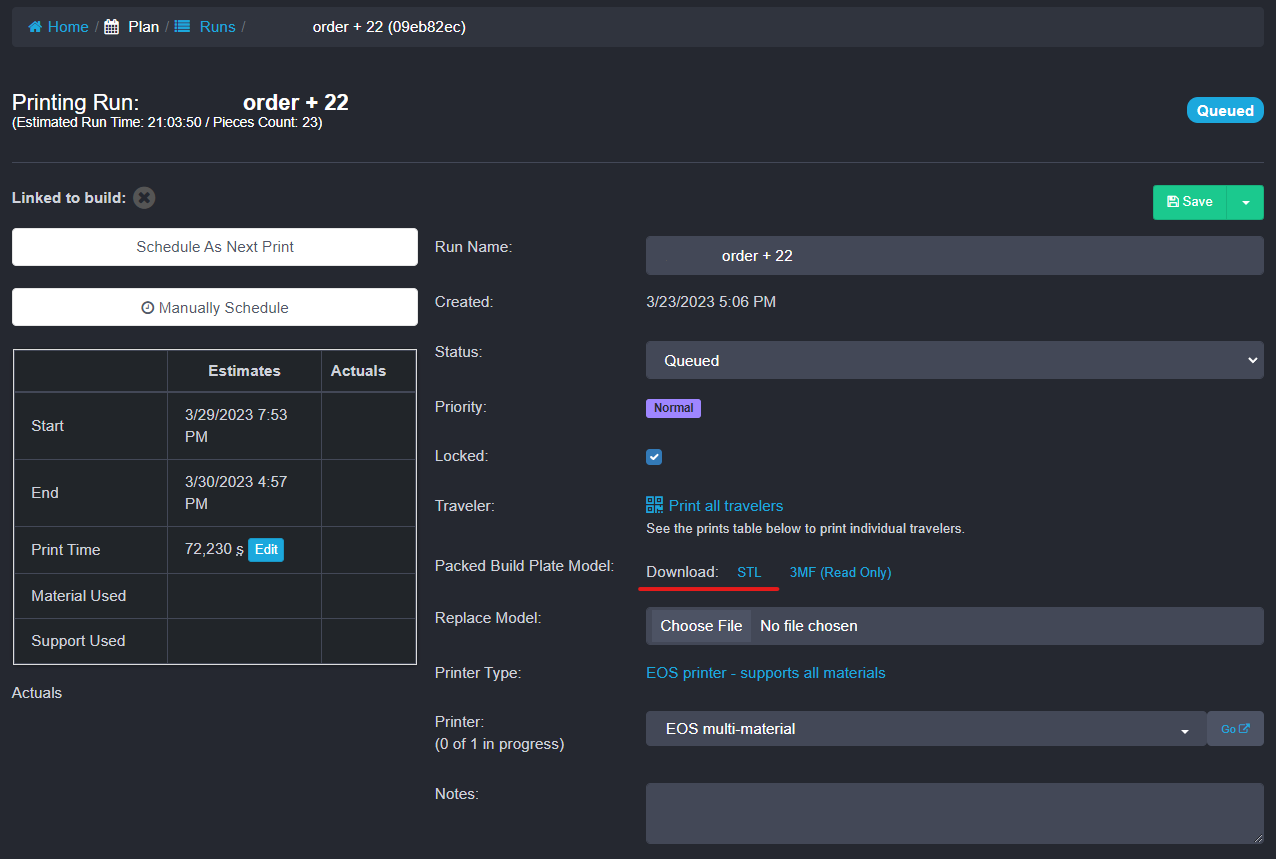

Create the run and wait for it to finish calculating then you can download the packed models stl file

curl --location 'https://<domain>/create-runs/'
--header 'Content-Type: application/json'
--header 'Cookie: session=<session_id>'
--data '{
    "do_build_volume_check": true,
    "run_name": "Pack3d Premium order + 22",
    "printer": "https://<domain>/printer/3453c0e6-0082-4b8d-a82a-288df94a96d8/",
    "pieces": [
        "https://<domain>/piece/94b013f7-5de4-42bc-96a8-d34ccf867c94/",
        "https://<domain>/piece/95720dcb-8357-40cd-be63-66ba6c9c28ef/",
        "https://<domain>/piece/9ed491b7-347a-4112-a4f0-7ac891cf4039/",
        "https://<domain>/piece/a85975b2-3489-4511-a3ec-2b0a2db8bf44/",
        "https://<domain>/piece/ad33bed7-330a-43d7-9c81-500446dcee30/",
        "https://<domain>/piece/af20d2d7-be77-412e-abcd-e057febb5bdd/",
        "https://<domain>/piece/af34950f-ae71-4469-810e-e78a3868e747/",
        "https://<domain>/piece/ba909fe4-5f40-4bfe-be89-b8c8a672dc7c/",
        "https://<domain>/piece/3fde7ba3-4d6f-475f-855c-1983863d4d22/",
        "https://<domain>/piece/42a23542-6143-499a-8d17-e7ec33b2c1c6/",
        "https://<domain>/piece/4c93766e-c8a0-475f-815e-7740f8a81dfd/",
        "https://<domain>/piece/4d7776ab-7993-458c-b25f-b292650bb669/",
        "https://<domain>/piece/57b9205c-2a2b-4ef1-b2b5-ba4d42fc4276/",
        "https://<domain>/piece/5847f563-0448-456c-badb-3168ca974fe9/",
        "https://<domain>/piece/5bb8956f-8683-4dee-be9e-47da9919d797/",
        "https://<domain>/piece/613b1d91-b32f-490b-bcf8-b84bc56fc5c5/",
        "https://<domain>/piece/69951eea-f7ed-4a37-89f1-44915eac6e6c/",
        "https://<domain>/piece/0a841f18-2d93-4960-8930-70595b1b4b9c/",
        "https://<domain>/piece/14ac8bb9-6516-42a6-be49-7f6c2216ed02/",
        "https://<domain>/piece/1a5ce242-8ab6-4a97-a260-c857bd35c990/",
        "https://<domain>/piece/2a6e186f-ef4a-4e80-8a26-f760cc68a5a0/",
        "https://<domain>/piece/3e6ddbb0-589c-4289-9d79-d7bdbe464108/",
        "https://<domain>/piece/3fcc0b59-b7a8-4e26-a40b-ce8e3fdbb1f1/"
    ]
}'

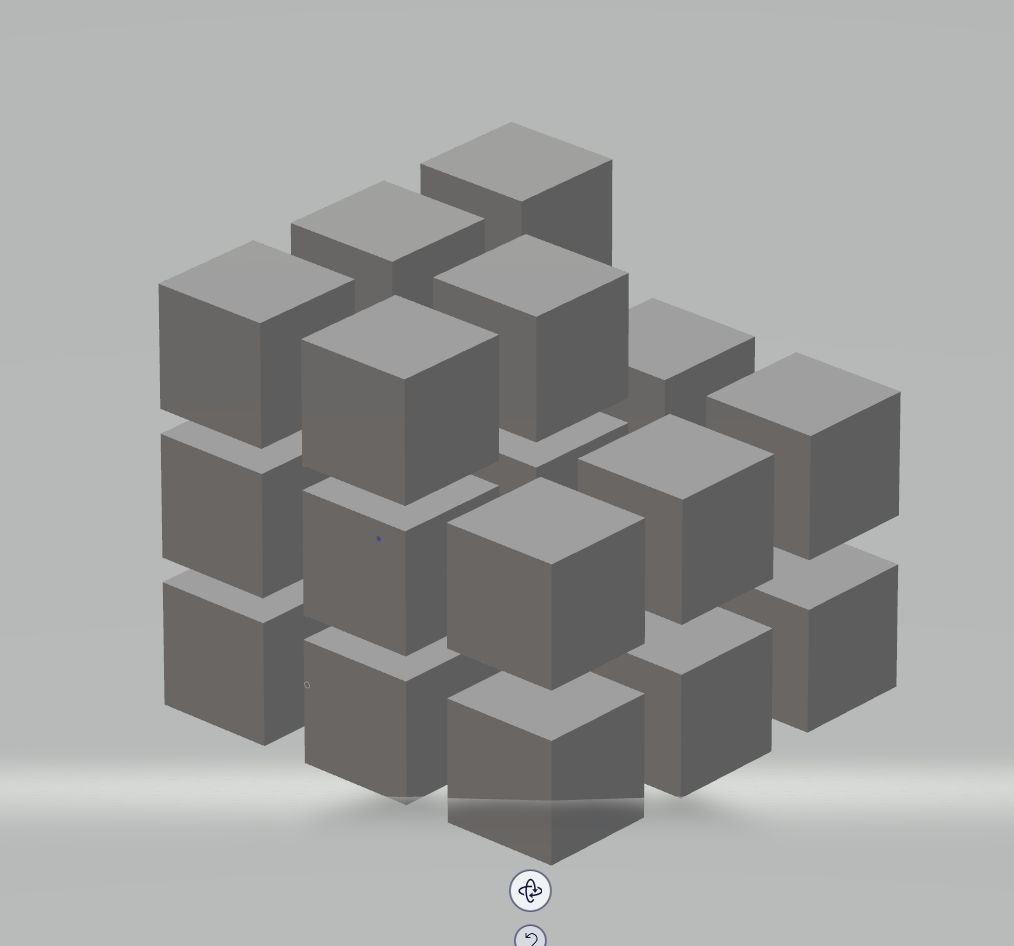

the models will be tightly packed within the build plate dimensions while keeping the minimum packing distance set in the printer type:
